AC/DC Voltage Tester Auto/Manual Ranging

Hover over image to zoom

  • Image 1
  • Image 2
RRP: $89.95
$59.95 (You save $30.00)
SKU:
DT3260
Availability:
Same Day Dispatch Before 3pm
Shipping:
Standard 2-4 Days Free
Express 1-2 Days $14.95


More Information

Sorry but this item is currently unavailable. Please check back at a later stage.

 Product Description

This professional tester is ideal for electrical trouble shooting, which can trouble shooting, which can check components (resistance, capacitance, diode and continuity) and circuit fault it is perfect for the work belt. It has a rugged housing which is designed for maximum safety, it feels good to hold and with its easy to read LCD screen makes taking a reading a pleasure. All inputs are protected to: * EN 610101-1 CATIII 600V * EN 6010101-1 CAT II 1000V.

  • Automatic DCV or ACV selection, Capacitance, Resistance, Continuity and diode selection
  • 6000 counts LCD display
  • Auto/manual ranging
  • Data Hold/MAX/MIN recording mode
  • Auto Power Off
  • Wide capacitance range
  • Diode Check
  • Continuity Test and Sounder

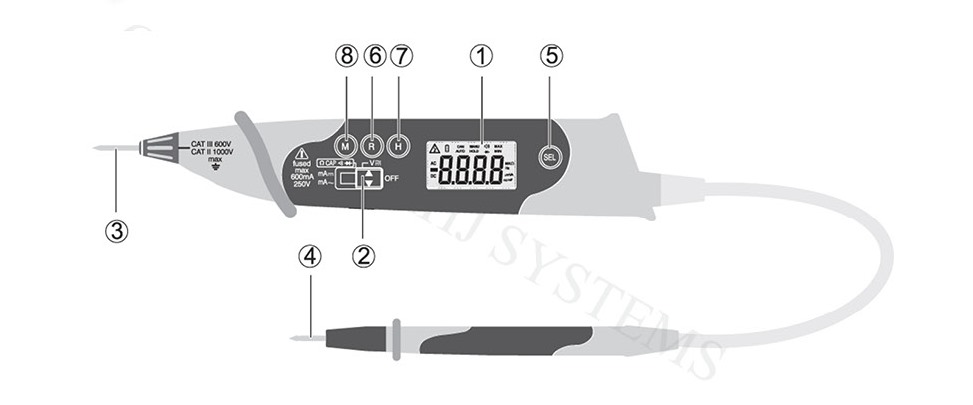

dt3260-layout.jpg 1. 6000 counts LCD display
2. Function switch
3. Positive input test probe
4. COM (negative) input test probe
5. Mode selection button
6. Range pushbutton
7. Data Hold pushbutton
8. MAX. Hold pushbutton
  • Continuity
  • Diode test
  • micro (amps)
  • mili (volts, amps)
  • kilo (ohms)
  • ohms



Function Max. Range Basic Accuracy
Voltage AC 600V ±0.5%
Voltage AC 600V ±1.0%
Current DC 400mA ±1.0%
Current AC 400mA ±1.5%
Resistance 40Ω ±1.0%
Capacitance 40mF ±3.5%
Size(HxWxD) 230mm x 35mm x 20mm
Weight 200g



What's In The Box

Delivery Box
  • Digital Tester
  • Instruction Manual
  • Batteries included
  • Test point extender
  • CE Approval
  • Test clamp
  • Spare fuse
  • 1 Year Warranty

CE   1 Year Warranty iec1010-1.jpg  cat-iii-600v.jpg



Data Sheet DataSheet

 Warranty Information


12 Months Warranty
